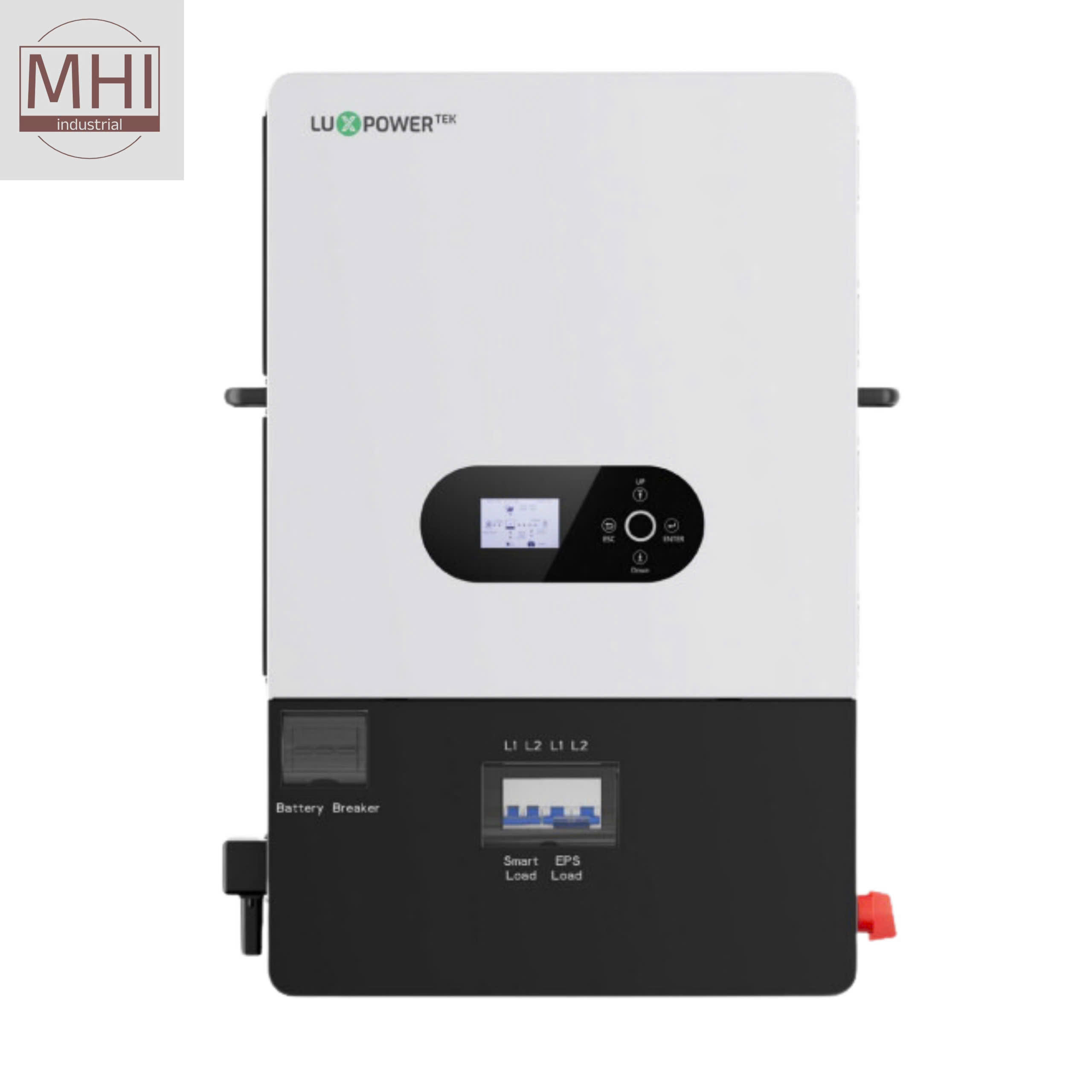

Biến tần Luxpower SNA 12K

  • Model: SNA 12K
  • Công suất máy: 12kW ( 12000W)
  • Công suất đầu vào tối đa DC: 24000W (12000/12000W)
  • Dải điện áp DC: Dải điện áp DC
  • Số kênh MPPT: 2/(2:2)
  • Loại pin tương thích: Lithium-ion/ Lead-Acid
  • Công suất sạc/xả tối đa: 12000W
  • Kích thước : 530x830x150 mm
  • Trọng lượng: 40Kg
Chi tiết

Mô tả

INPUT (PV DC) SNA 12K
Max. PV array power (W) 24000 (12000/12000)
Reted  PV input  voltage (V) 320
Number of independent MPPT inputs 2/(2:2)
PV input  voltage range (V) 100-480
MPPT voltage range (V) 120-385
Start-up voltage (V) 100
Max. PV input  current per  MPPT (A) 35/35
Max. PV short-circuit current input  per  MPPT (A) 44/44
Battery
Compatible battery type Lithium-ion/Lead-Acid
Rated  battery voltage (V) 48/51.2
Battery voltage range (V) 46.4-60/38.4-60
Max. charging / discharging current (A) 250
Max. charging / discharging power (W) 12000
Force  wake  up battery from PV and  Grid function YES
Grid
Rated  AC voltage (V) 230
Acceptable Input  Voltage Range  (V) 90~280
Rated  AC frequency  (Hz) 60/50
Rated  AC intput current (A) 100
Rated  AC intput  power (W) 24000
PF 0.99
THDI <5%
Max. continuous AC passthrough current(A) 100
UPS
Rated  output power (W) 12000
Rated  output voltage (V) 230
Rated  output current (A) 50
Rated  output frequency (Hz) 50/60
Surge power, duration 2Pn, 5s
Switching time ( UPS ) <10ms@Single and  Parallel
Wave  form Sine wave
THDV 3%
GEN
Acceptable input  voltage range 230
Max. AC input  voltage (V) 280
Max. AC input  current (A) 63
Rated  input  frequency 50Hz/60Hz (Auto detection)
Transfer time <10ms@Single; <20ms@Parallel
THDV <3%
Overload protection 5s@≥150% load  /10s@110%~150% load
Efficiency
Max. efficiency 90.0%
Max. charging / discharging eŽciency 90.0%
Max. MPPT efficiency 99.0%
Protection
PV reverse polarity protection(Y/N)
YES
Over current / voltage protection(Y/N) YES
AC Short-circuit current protection(Y/N) YES
Grid monitoring(Y/N) YES
DC switch(Y/N) YES
DC / AC Surge protection Type lll YES
Battery reverse polarity protection(Y/N) YES
General
Dimensions ( W*H*D mm ) 530*830*150mm(17.72*25.59*5.9inch)
Weight 40kg/88.2lbs
Ingress protection rating IP20
Operating environment temperature range(°C) 0~45
Storage temperature range(°C) -15~60
Relative humidity 5% ~ 95%
Display  & Communication interface LCD+RGB, RS485 / Wifi / CAN
Warranty 2 years
Cooling method Smart cooling
Topology on AC / Battery side Transformer-less / Transformer
Altitude (m) <2000
Noise emission (typical) <50dB
Standard & Certification
