giắc cắm 10 chân 16A Harting han 10B 09300100305 - 19302101541 - 09330102601 - 09330102701

SẢN PHẨM
CÔNG NGHỆ TỰ ĐỘNG HÓA
Giắc cắm
Harting
Bộ giắc cắm Harting
giắc cắm 10 chân 16A Harting han 10B 09300100305 – 19302101541 – 09330102601 – 09330102701

giắc cắm 10 chân 16A Harting han 10B 09300100305 – 19302101541 – 09330102601 – 09330102701

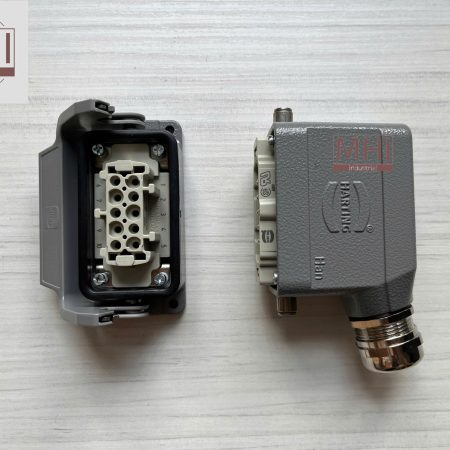

Han 10B-HMC-gs-R-M25 Code: 19 30 210 1541 Han B Base Panel 1 Lever Code: 09 30 010 0305 Han E 10 Pos. M Insert Screw Code: 09 33 010 2601 Han E 10 Pos. F Insert Screw Code: 09 33 010 2701

Chi tiết

Email to a Friend Print

Danh mục: Bộ giắc cắm Harting Từ khóa: giắc cắm 10 chân 16A Harting han 10B 09300100305 - 19302101541 - 09330102601 - 09330102701

Mô tả

Male insert: 09330102601

Technical characteristics
Conductor cross-section 0.75 … 2.5 mm²
Conductor cross-section [AWG] AWG 18 … AWG 14
Rated current ‌ 16 A
Derating tool
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated voltage acc. to CSA 600 V
Insulation resistance >1010 Ω
Contact resistance ≤ 1 mΩ
Stripping length 7.5 mm
Tightening torque 0.5 Nm
Limiting temperature -40 … +125 °C
Mating cycles ≥ 500

Female insert: 09330102701
